MODULAR OT CLEAN ROOM

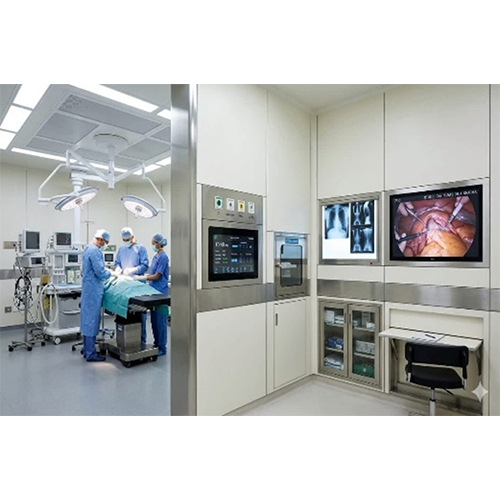

• Application
• Operation Theaters, Medical Cleanrooms, Intensive Care Units, Laboratories

• Automation Grade
• Manual installation

• Color Code
• Customizable (typically white or light shades for cleanrooms)

• Dimension (L*W*H)
• Modular, customizable sizes (usually panels are 1000mm x 3000mm x 40mm)

• Display
• Not Applicable (displays can be integrated as per requirements)

• Function
• Partitioning and enclosing spaces with high hygiene requirements

• Height
• Customizable as per room design

• Humidity Range
• Up to 99% (non-condensing environment)

• Material
• High-grade Stainless Steel / Galvanized Steel / Powder-Coated Metal / Medical Grade Laminate

• Power
• Not applicable (passive panel system)

• Product Type
• Wall and Ceiling Panel System

• Properties
• Antibacterial, fire-resistant, chemical-resistant, easy to clean, modular, sound-insulating

• Shape
• Rectangular modular panels

• Suitable For
• Hospitals, healthcare facilities, laboratories, pharmaceutical plants

• Temperature Range
• 0C to 50C operating environment

• Treatment Type
• Powder-coated, antibacterial surface treatment

• Use
• Building sterile and controlled environment walls and ceilings

• Weight
• Varies as per design and material, approx. 45-60 kg per panel

• Accuracy
• High Operational Precision

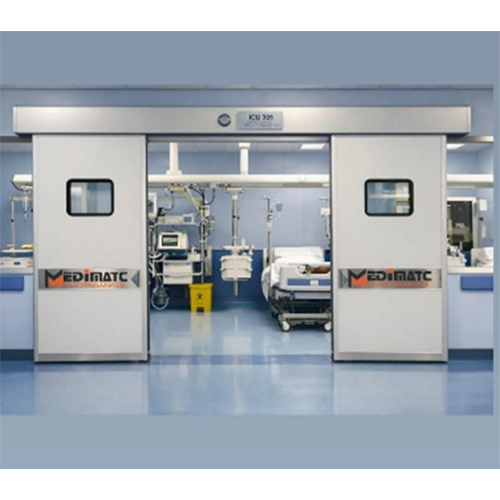

• Application
• Hospitals, Intensive Care Units, Operation Theatres

• Automation Grade
• Fully Automatic

• Color Code
• White / Light Gray

• Dimension (L*W*H)
• 2100mm x 1200mm x 50mm (customizable)

• Frequency
• 50/60 Hz

• Function
• Automatic Opening & Closing, Manual Override

• Height
• 2100mm (standard, customizable)

• Humidity Range
• 20% - 90% RH

• Material
• High-Grade Steel with Antimicrobial Coating

• Phase
• Single Phase

• Power
• 150W Motor

• Power Source
• Electric

• Product Type
• Hospital Door System

• Properties
• Automatic Sliding, Hermetically Sealed, Sound Insulating, Bacteria Resistant

• Shape
• Rectangular

• Suitable For
• ICUs, OTs, Pharmacies, Isolation Rooms

• Temperature Range
• -10C to 50C

• Treatment Type
• Antibacterial Powder Coating

• Use
• Access Control, Hygienic Entry, Emergency Access

• Voltage
• 220-240V

• Weight
• Approx. 85 kg per door leaf

• Accuracy
• High-efficiency filtration (HEPA filters 99.97% @ 0.3 micron)

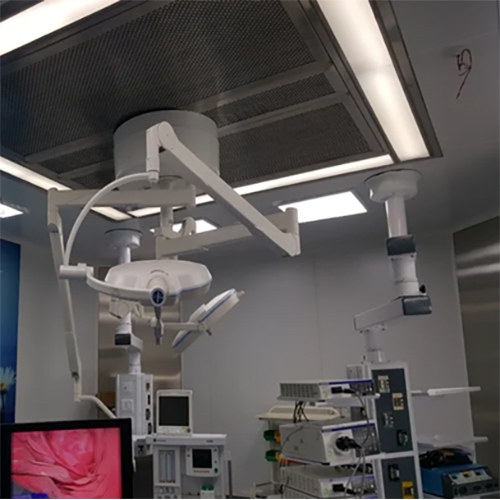

• Application
• Hospital Operating Theatres, Laboratories, Cleanrooms

• Automation Grade
• Semi-automatic / Automatic (on request)

• Color Code
• Silver / Custom Coating

• Dimension (L*W*H)
• Customizable as per requirement

• Display
• No digital display (or optional as per specification)

• Display Type
• N/A (Optional digital panel available)

• Frequency
• 50Hz/60Hz

• Function
• Air purification and laminar air flow delivery

• Height
• Modular - ceiling mounted, adjustable installation

• Humidity Range
• Up to 80% RH

• Material
• Stainless Steel / Mild Steel

• Phase
• Single Phase

• Power
• Rated between 500W-1500W depending on size

• Power Source
• Electric

• Product Type
• Laminar Flow System

• Properties
• Delivers a continuous, unidirectional airflow to maintain sterility

• Shape
• Rectangular / Modular Ceiling Mount

• Suitable For
• Surgical areas, Critical healthcare environments

• Temperature Range
• 10C - 45C operating

• Treatment Type
• HEPA filter, ULPA filter (option)

• Use
• Removes airborne particles, providing a contaminant-free environment

• Voltage
• 220V/240V AC

• Weight
• Varies according to model (approx. 80-200 kg)

• Accuracy
• +/- 2%

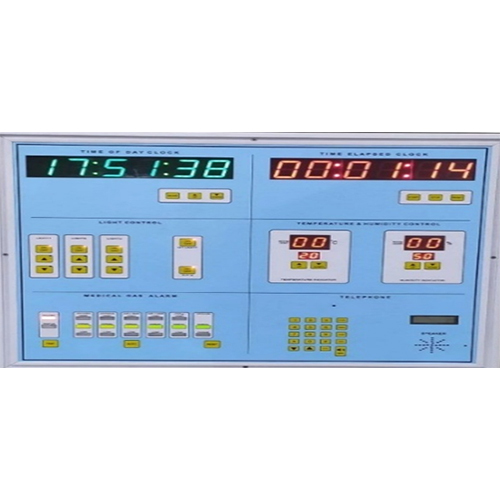

• Application
• Modular Operation Theatres, Hospitals

• Automation Grade
• Automatic

• Color Code
• Light Blue/White (customizable)

• Dimension (L*W*H)
• 1200 mm x 600 mm x 75 mm (approx.)

• Display
• LED Digital and LCD (as required)

• Display Type
• Digital LED (Time, Temperature, Humidity, etc.)

• Frequency
• 50-60 Hz

• Function
• Integrated Controls for Medical Gas Alarm, Timer, Clock, Temperature, Lighting, and More

• Height
• 75 mm depth (approx.)

• Humidity Range
• 0% - 99% RH

• Material
• Powder Coated Steel/Aluminium Front Plate

• Phase
• Single or Three Phase (as per requirement)

• Power
• 24V DC / 220-240V AC

• Power Source
• Electric

• Product Type
• Surgeon Control Panel

• Properties
• Fully Electronic, Membrane Keypad, Microprocessor-Based Design

• Shape
• Rectangular Flush Mount

• Suitable For
• Modular Operation Theatre Suites

• Temperature Range
• 0C to 50C

• Treatment Type
• Operation Theatre Environmental Control

• Use
• Controlling and Monitoring Operation Theatre Equipment & Environment

• Voltage
• 220-240 V AC

• Weight
• Approx. 10-18 kg

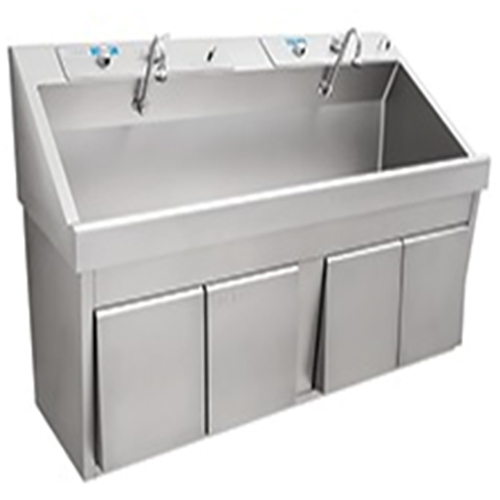

• Application
• Hospitals, Operation Theatres, Clean Rooms, Healthcare Facilities

• Automation Grade
• Manual / Semi-Automatic / Fully Automatic

• Color Code
• Silver / Metallic

• Dimension (L*W*H)
• Custom / Standard, e.g., 1800 x 600 x 1200 mm

• Frequency
• 50/60 Hz

• Function
• Touchless/Manual Scrubbing

• Height
• Standard - matches standard sink height (800 to 900 mm)

• Material
• Stainless Steel (SS304/316)

• Phase
• Single Phase

• Power
• 0.5 HP (if automatic); not required for manual type

• Power Source
• Electric (for automatic faucets and soap dispensers)

• Product Type
• Scrub Station

• Properties
• Corrosion resistant, Easy to clean, Durable, Hygienic design

• Shape
• Rectangular with slanting splashback

• Storage Capacity
• Integrated storage under the sink

• Suitable For
• Doctors, Surgeons, Medical Staff

• Temperature Range
• Ambient, can be fitted with hot/cold mixer

• Treatment Type
• Hand & Arm Decontamination

• Use
• Hand and arm scrubbing for pre-surgical and sterile procedures

• Voltage
• 220-240 V AC (for powered units)

• Weight
• Approximately 60-100 kg (varies by size and configuration)

• Accuracy
• N/A (for pass box monitoring only)

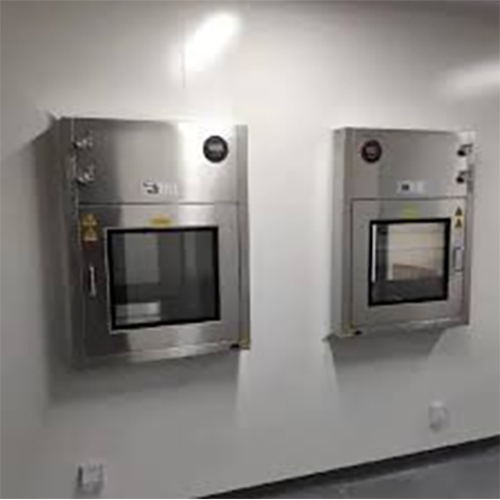

• Application
• Pharmaceutical, Laboratory, Clean Room Transfer

• Automation Grade
• Manual / Semi-Automatic

• Color Code
• Silver/Grey

• Dimension (L*W*H)
• Customizable, e.g., 600 x 600 x 600 mm

• Display
• Analog/Digital gauge for pressure

• Display Type
• Analog or Digital

• Frequency
• 50 Hz

• Function
• Material Transfer

• Height
• Customized as per requirement

• Humidity Range
• Not applicable (ambient environment)

• Material
• Stainless Steel (SS 304/316)

• Phase
• Single Phase

• Power
• 220-240 V

• Power Source
• Electric

• Product Type
• Pass Box

• Properties
• Double-walled construction, UV lamp, Interlocking doors, Stainless steel finish

• Shape
• Rectangular

• Suitable For
• Hospitals, Pharma, Electronics, Labs

• Temperature Range
• Ambient

• Treatment Type
• UV Treatment (optional)

• Use
• Transfer of items between clean and non-clean room areas

• Voltage
• 220-240 V AC

• Weight
• Approx. 40-80 kg (varies as per size)

• Accuracy
• Mechanical, not applicable

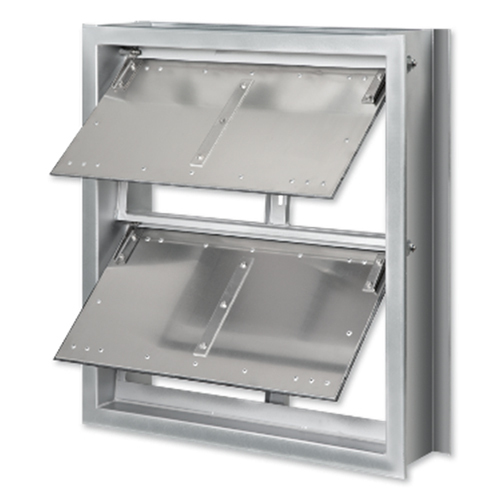

• Application
• Ventilation, Pressure Control in HVAC systems, Clean Rooms, Laboratories, Pharmaceutical Facilities

• Automation Grade
• Automatic (Mechanical, Non-electrical)

• Color Code
• Metallic Silver

• Dimension (L*W*H)
• Customizable (standard size: 600mm x 600mm x 100mm)

• Function
• Releases excessive air pressure to maintain balanced environment

• Height
• Customizable as per requirement

• Humidity Range
• Up to 95% RH

• Material
• Galvanized Steel / Aluminum

• Power
• Not required (Passive device)

• Product Type
• Pressure Release Damper

• Properties
• Automatic opening upon pressure build-up, Spring-loaded mechanism, Air leakage prevention

• Shape
• Rectangular

• Suitable For
• HVAC Ducts, Exhaust Systems, Industrial and Commercial Buildings

• Temperature Range
• -10C to +70C

• Treatment Type
• Corrosion Resistant Coating

• Use
• Maintains room air pressure, Prevents backdraft

• Weight
• Approx. 7-12 kg (varies with size)

• Accuracy
• Uniform brightness for clear film observation

• Application
• Viewing X-Rays in medical facilities, hospitals, clinics, and diagnostic centers

• Automation Grade
• Manual

• Color Code
• White/Silver

• Dimension (L*W*H)
• Approx. 430mm x 330mm x 50mm

• Display
• Illuminated Acrylic Panel

• Display Type
• Fluorescent/LED backlit

• Frequency
• 50 Hz

• Function
• Illuminates film for accurate diagnosis

• Height
• Approx. 430mm

• Humidity Range
• Up to 95% RH (Non-condensing)

• Material
• Metal Body with Acrylic Viewing Panel

• Phase
• Single Phase

• Power
• 15-30 Watts

• Power Source
• Electric

• Product Type

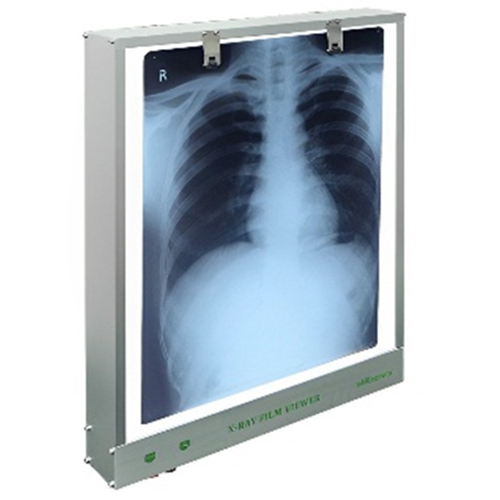

• X-Ray Viewer

• Properties
• Uniform illumination, wall-mountable, lightweight

• Shape
• Rectangular

• Storage Capacity
• Single X-ray film at a time

• Suitable For
• X-ray film viewing

• Temperature Range
• 0C to 45C

• Treatment Type
• Diagnostic Imaging

• Use
• Display and viewing of X-ray films

• Voltage
• 220-240 V AC

• Weight
• Around 3-5 kg

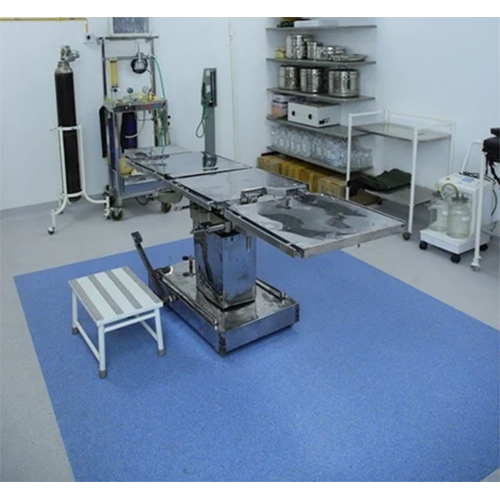

• Application
• Pharmaceuticals, Hospitals, Laboratories, Research Facilities, Electronic clean rooms

• Automation Grade
• Manual installation

• Color Code
• Light Blue / Grey (customizable)

• Dimension (L*W*H)
• Custom, as per room size

• Function
• Floor covering for hygienic and particulate-controlled settings

• Height
• Usually 2mm to 6mm thickness

• Humidity Range
• Up to 100% RH (depending on model/finish)

• Material
• PVC / Vinyl / Epoxy / Polyurethane (depending on model/variant)

• Product Type
• Clean Room Flooring

• Properties
• Anti-static, Dustproof, Easy-to-clean, Chemical resistant, Non-porous, Seamless joint

• Shape
• Rectangular/Custom fit

• Suitable For
• Cleanrooms, Laboratories, Operating Theatres, R&D Units

• Temperature Range
• -10C to +60C (varies with material)

• Treatment Type
• Anti-microbial/Anti-fungal (optional)

• Use
• Provides a sterile, cleanable, and durable flooring solution for controlled environments
