Zonal Control Equipment

• Accuracy
• 1.6% Full Scale (Pressure Gauge)

• Application
• Medical Gas Pipeline System (MGPS) in Hospitals

• Automation Grade
• Manual

• Color Code
• White/Neutral (Body), Multicolor Labels

• Dimension (L*W*H)
• 400mm x 300mm x 150mm (Approx.)

• Display
• Analog Pressure Gauges

• Display Type
• Analog

• Function
• Zonal Isolation and Monitoring

• Height
• Approx. 400 mm

• Humidity Range
• 0-90% RH (Non-Condensing)

• Material
• Powder Coated Mild Steel, Brass, Acrylic (Front Panel)

• Phase
• Single Phase

• Power
• Not Required (Manual Operation)

• Product Type

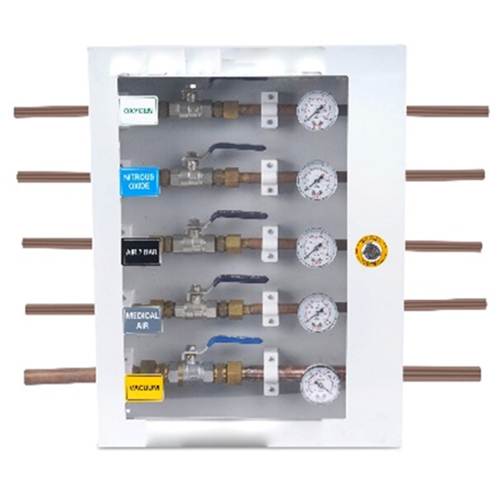

• Zonal Valve Box

• Properties
• Corrosion Resistant, Lockable, Transparent Front, Multiple Gas Compatibility

• Shape
• Rectangular Box

• Storage Capacity
• Holds up to 4-6 Gas Lines

• Suitable For
• ICUs, Operation Theatres, Wards

• Temperature Range
• 0C to 50C

• Treatment Type
• Medical Gas Zone Control

• Use
• Isolation and Monitoring of Medical Gases

• Weight
• Approx. 6-8 kg

• Accuracy
• 2% of Full Scale

• Application
• Hospital Gas Pipeline System, Medical Gas Monitoring

• Automation Grade
• Automatic

• Color Code
• White/Grey

• Dimension (L*W*H)
• Approx. 300mm x 200mm x 85mm

• Display
• Analog and LED Indication

• Display Type
• Analog Dial Gauges and LED Indicators

• Frequency
• 50 Hz

• Function
• Continuous Area Gas Pressure Alarm

• Height
• Approx. 85 mm

• Humidity Range
• 10% to 90% RH (non-condensing)

• Material
• Metal Body with Polycarbonate Front Panel

• Phase
• Single Phase

• Power
• 230V AC

• Power Source
• Electric

• Product Type

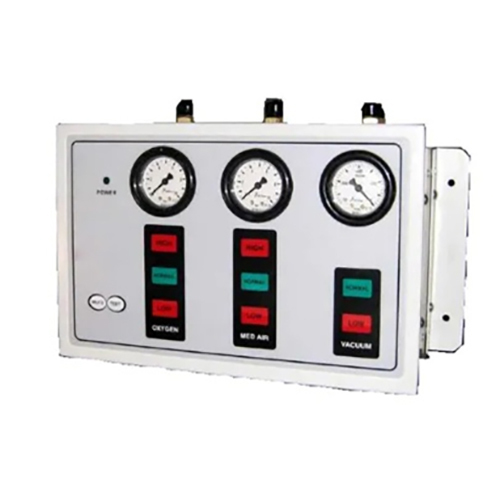

• Area Gas Alarm

• Properties
• Visual & Audible Alarm, Multiple Gas Pressure Indication

• Shape
• Rectangular

• Suitable For
• Medical and Industrial Use

• Temperature Range
• 0C to 50C

• Use
• Area Gas Level and Pressure Monitoring

• Voltage
• 230 Volts

• Weight
• Approx. 2.5 kg

• Accuracy
• High Accuracy

• Application
• Medical Gas Alarm Monitoring

• Automation Grade
• Automatic

• Color Code
• Blue & Black

• Dimension (L*W*H)
• Standard/Multiple Sizes Available

• Display
• Digital

• Display Type
• LED Digital Display

• Frequency
• 50 Hz

• Function
• Gas Pressure and Status Indication, Audible/Visual Alarm

• Height
• Compact Design/Model Dependent

• Humidity Range
• 5% to 95% RH

• Material
• Metal and Plastic Body

• Phase
• Single Phase

• Power
• Electronic

• Power Source
• Electric

• Product Type

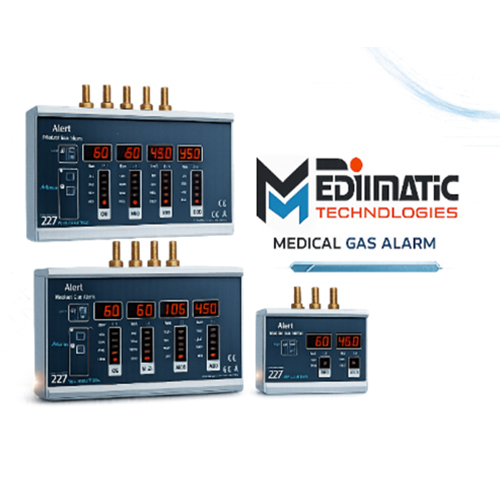

• Master Alarm System

• Properties
• Multi-line Digital Display, LED Indicators, Audio Alarm Facility

• Shape
• Rectangular

• Storage Capacity
• Multiple Gas Lines Monitoring

• Suitable For
• Hospital Medical Gas Pipeline Systems

• Temperature Range
• 0C to 50C

• Use
• Monitoring and Alerting Medical Gas Supply Levels in Hospitals

• Voltage
• 220V AC

• Weight
• Lightweight/Varies per Model

• Accuracy
• 1% system control

• Application
• Building Automation, HVAC Zonal Control, Energy Management

• Automation Grade
• Fully Automatic

• Color Code
• Silver/Grey

• Dimension (L*W*H)
• 600mm x 400mm x 200mm (typical)

• Display
• Backlit Digital LCD

• Display Type
• Digital LCD/LED

• Frequency
• 50/60 Hz

• Function
• Automated control, monitoring, zoning, alarm, and maintenance alerts

• Height
• 200mm (panel), 400mm (cabinet)

• Humidity Range
• 10% to 90% RH, non-condensing

• Material
• High-grade Metal and Industrial Polycarbonate

• Phase
• Single/Three Phase (as per system design)

• Power
• 230V AC (typical), <50W system consumption

• Power Source
• Electric

• Product Type

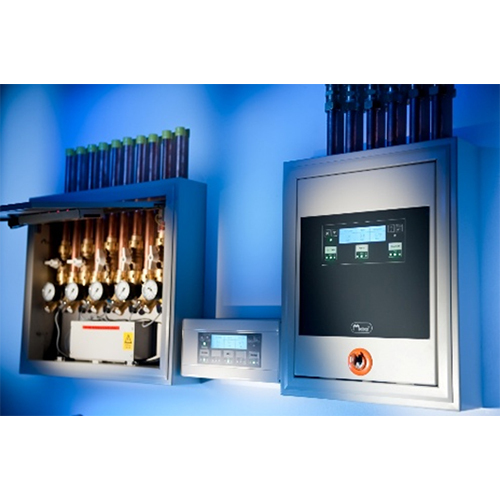

• Integrated Zonal Control System

• Properties
• Multi-zone integration, digital display, modular design, remote monitoring capability

• Shape
• Rectangular, panel mounted

• Storage Capacity
• Configurable controller memory for multiple zone profiles

• Suitable For
• Commercial and Industrial Automation Systems

• Temperature Range
• -10C to +50C operating

• Treatment Type
• Surface treated for corrosion resistance

• Use
• Centralized control and monitoring of multiple zones within a facility

• Voltage
• 230V AC / 110V AC (configurable)

• Weight
• Approx. 12-20 kg depending on configuration
